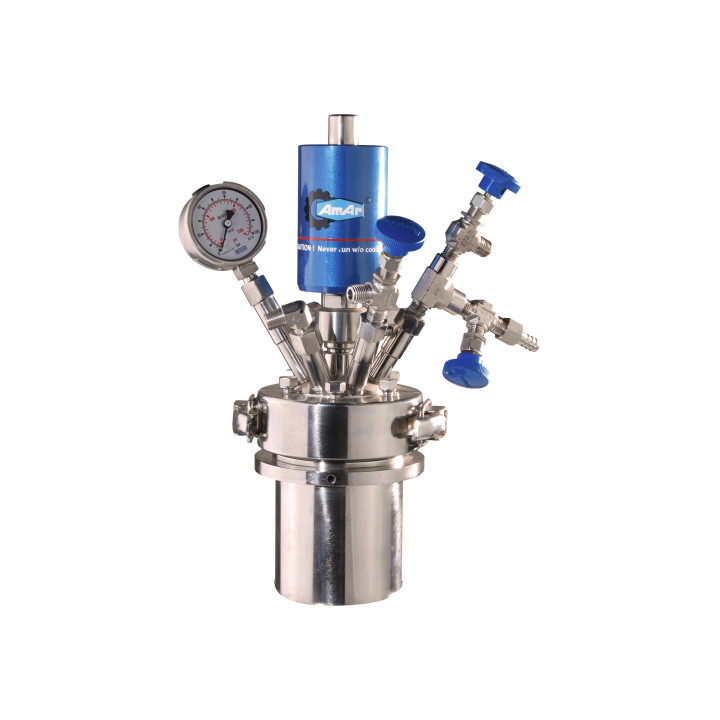

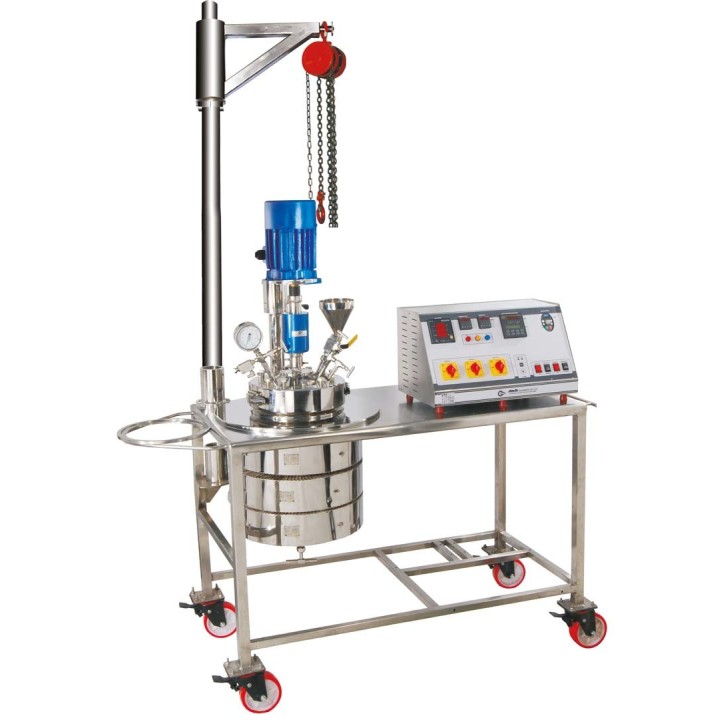

Reaktory 100 litrové

Ref: A30100 Skladom u dodávateľa
Objem reaktorov 100 lit., max. tlak do 100 bar, max. teplota do 500°C
Objem 100 litrov
Teplota 300 / 500 °C
Maximálny tlak 50 / 100 bar
Min. objem miesania 12 litrov
Cena na dopyt
Vyžiadať cenovú ponuku
Potrebujete poradiť? 048 / 415 4256
Autorizovaný distribútor
Servis a kalibrácia
Dodanie do 24 hodín
Cenová ponuka do 24h
ZnačkaAMAR
ReferenciaA30100
Objem100 litrov
Teplota300 / 500 °C
Maximálny tlak50 / 100 bar
Min. objem miesania12 litrov
Ohrevelektrický alebo obvodovým plášťom
Rychlost miesanianastaviteľná do 440 rpm
Napájanie440V/50Hz

A 3000 seria 100 litrových vysokotlakových reaktorov


Štandardné modely reaktorov s objemom 100 litrov

Model no. A 3503 A 3505 A 3513 A 3515
Design Pressure 50 bar 100 bar
Design Temperature 300°C 500°C 300°C 500°C
Vessel I/D (mm) 456 440
Vessel Internal Height (mm) 699 735
Min. Stirrable Volume (lit) 12



Technická špecifikácia pre štandardné modely vysokotlakých reaktorov série A3000

Sr. Description Standard Optional
A Material of Construction SS 316 wetted parts SS 316L, Hastelloy C 276, Hastelloy C 22, Hastelloy B, Monel 400, Inconel 600, Inconel 625, Nickel 200, Titanium Gr. 2, Zirconium 702, Tantalum lined
B Head Mounting Style Removable head and vessel design Fixed head with pneumatic vessel raising lowering (10ltr to 25ltr)
Fixed head with hydraulic vessel raising lowering (50ltr & 100ltr)
Fixed head with pneumatic vessel raising lowering & tilting (10ltr to 25ltr)
Fixed head with hydraulic vessel raising lowering & tilting (50ltr & 100ltr)
C Heating Type Electrical ceramic band heater with cladding & insulation & heater temperature control for 500°C Electrical cast ex-proof, IIB + H2 certified Welded SS 304 jacket with insulation Welded SS 304 jacket with electrical ceramic heater Limpet coil SS 304 with insulation (20ltr to 100ltr)
D Motor ½ hp AC motor for 10 ltr, 20 ltr & 25 ltr locked to 750 rpm
1 hp AC motor for 50 ltr & 100 ltr locked to 500 rpm		 1 hp / 2hp / 3hp Ex-proof gas group IIB (Zone 1) XB 1 hp / 2hp / 3hp Ex-proof gas group IIC (Zone 1) XC 1 hp / 2hp / 3hp Ex-proof CE ATEX certified II 2G Ex de IIC T4 AZ 1 hp / 2hp / 3hp Ex-proof CSA certified Class 1 Div 2 ¼ hp compact in-line brushless DC motor Gearbox upto 440 rpm
E Shaft Sealing Zero leakage magnetic drive coupling M80 with 8 Nm torque for 10 ltr to 25 ltr & M120 with 12 Nm torque for 50 ltr & 100 ltr reactor Zero leakage magnetic drive coupling: M120 with 12 Nm torque (for 10 to 25 ltr) M200 with 20 Nm torque (upto 750 rpm, for 10 to 25 ltr) M400 with 40 Nm torque (upto 750 rpm)
F Stirrer 2 stage 6 bladed turbine stirrer Hollow shaft with gas induction Impeller Anchor (Serpentine cooling coil, max 100 rpm) Spiral (No cooling coil, max 100 rpm) Ruston turbine Paddle Propeller
G Standard Nozzles, Valves & Fittings External Valves & Fittings:
Pressure gauge, safety rupture disc, gas inlet and liquid sampling needle valve with common dip tube, vent needle valve, ball valve for powder/ liquid inlet with funnel, flush bottom valve
Internal Fittings:
Helical cooling coil, dip tube, thermowell with RTD PT100 temperature sensor, baffles		 Serpentine cooling coil
H Gasket PTFE up to 300°C and metallic grafoil gasket up to 500°C Metallic grafoil gasket up to 500°C
I Closure Type Split clamp with clamp bolts
J Control Panel SS control panel with programmable PID temperature controller with high temperature alarm and variable frequency drive for motor speed control Ex-proof gas group IIA/IIB zone 1 certified Ex-proof gas group IIC zone 1 certified Touch screen
K Power Supply 1Ø, 220 V AC, 50 / 60 Hz Different power supply options may be possible on request
L Mounting SS Trolley Floor Stand
M Certifications By Amar Design approval as per ASME code by notified body CE-PED 2014/68/EU ASME U stamp coded ATEX certified reactor 2014/34/EU CE marked panel & electrical parts UL/CSA marked panel & electrical parts



Material of Construction (MOC) - Voliteľné



SS 316L 316L
Hastelloy C 276 HC6
Hastelloy C 22 HC2
Hastelloy B HB
Monel 400M N4
Inconel 600 IN6
Inconel 625 IN5
Nickel 200 NK2
Zirconium 702 ZR7
Titanium Gr. 2 TI2
Tantalum TAN
Tantalum lined TNL

Poznámky k tabuľke:

  • Vyššie uvedené špecifikácie sú pre maximálny pracovný tlak 100 bar (Kg/cm²) a 350°C teplotu. Pri vyššom tlaku alebo teplote autokláv sa údaje môžu zmeniť.
  • Celkové rozmery sa môžu zmeniť v závislosti na voliteľnom príslušenstve alebo špecificky navrhnutých modifikáciach.
  • Maximálne reakčný objem bude 75% objemu čistej kapacity (t.j. kapacity autoklávu).
  • Celkové elektrické zaťaženie prístroja = Motor kW + Ohrev kW + Auto chladiaca pumpa (0.37kW) (ak bola zvolená)+(hociktoré zvolené príslušenstvo).
  • Veľkosť panela je 300 x 300 x 300mm (pre štandardne 1 fázu s teplotou, otáčkami za minútu a kontrolkami tlaku) a 535 x 400 x 355 mm (šírka x hĺbka x výška) (pre štandardne 3 fázy s teplotou, otáčkami za minútu a kontrolkami tlaku), pre iné príslušenstvo sa to môže zmeniť.
Reaktory 100 litrové 92.78KB
